Description
Aluminium single dimension truss joined with tapered egg and pin system guaranteeing tight and full strength joins.

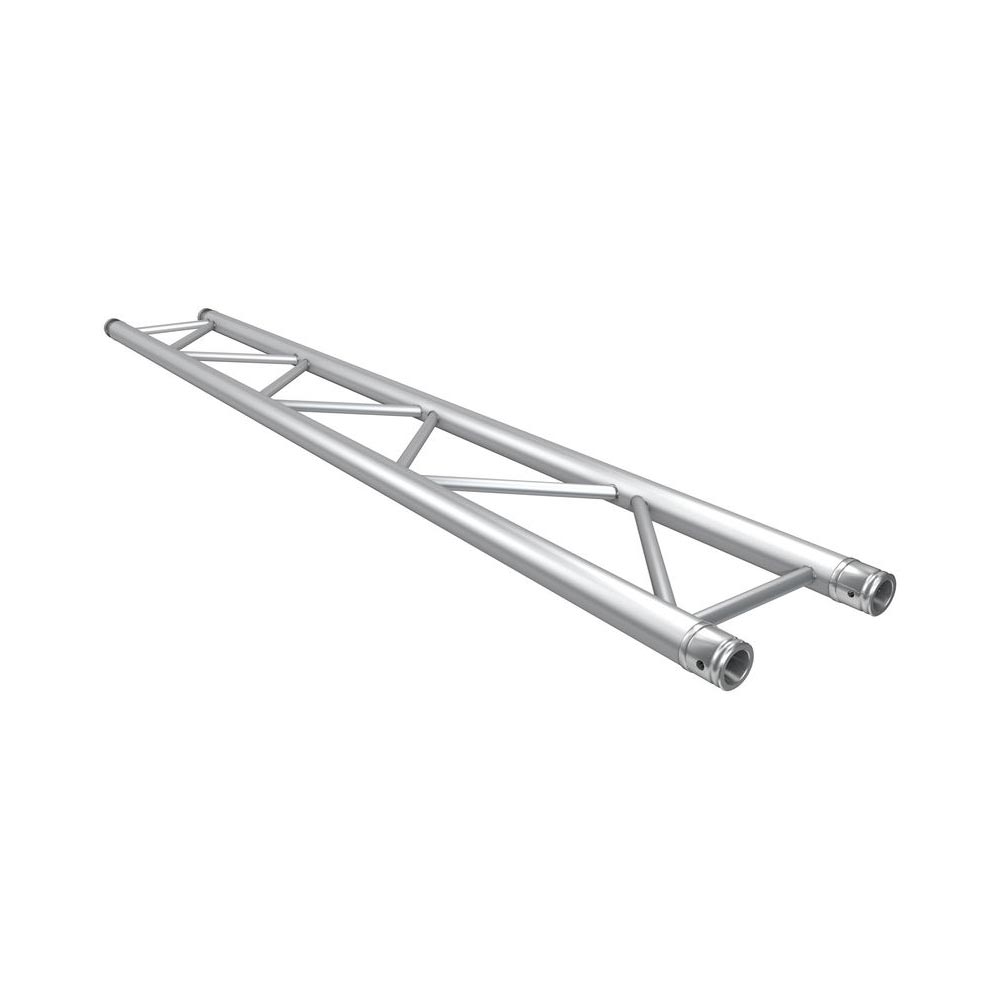

Global Truss F32 Flat Truss
| Data Sheet |
click here |
| Pipe Diameter |
50mm |
| Wall Thickness | 2mm |
| Material | Aluminium T6-6082 |
| Brace Diameter | 20mm |
| Truss Size | 290mm |
| Span (metres) |
Maximum CPL (kg) | Distributed Load (kg/m) |
| 2 | 371 | 371 |
| 3 | 115 | 77 |
| 4 | 47 | 23 |
| 5 | 21 | 8 |
